Plate return valves

One Way

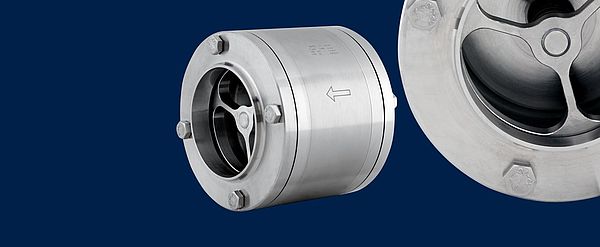

The plate non-return valves from Guth secure pipelines against an unwanted liquid return flow.

The spring-loaded fitting is characterised by a precise response and a reliable seal. Here, it is designed with optimised flow in mind and prevents turbulence in the direction of flow. For small pipe diameters, there are compact designs in the nominal diameters DN 10 and DN 15.







• hygienic seal, similar to DIN 11864

• flow-optimised housing

• minimum number of seals

• no corners/dead spaces

• flow-optimised plates

• Standard opening pressure: 0.1 – 0.2 bar

Technical data

Sizes

DN 10–100

Seals

EPDM, HNBR, FKM, FEP, FFKM, PTFE

Materials

in product contact

1.4301 / AISI 304 1.4404 / AISI 316L

Product-contacting surfaces

Ra ≤ 0.8 µm

Operating pressure

DN 10 - 65 / OD 0,5" - 2,5" DN 80 / OD 3" DN 100 - 150 / OD 4" - 6"

PN 16 PN16 PN 10 PN 10 PN 6 PN 6

Opening pressure

0.15 bar (±0.1)

Operating temperature

Continuous operation: Cleaning (CIP): Sterilisation (SIP):

1° C - 120° C 85° C 140° C

Connection variants

S-S welding connection both sides G-S threaded-/welded connection G-G thread/thread K/M-G cone nut/thread
